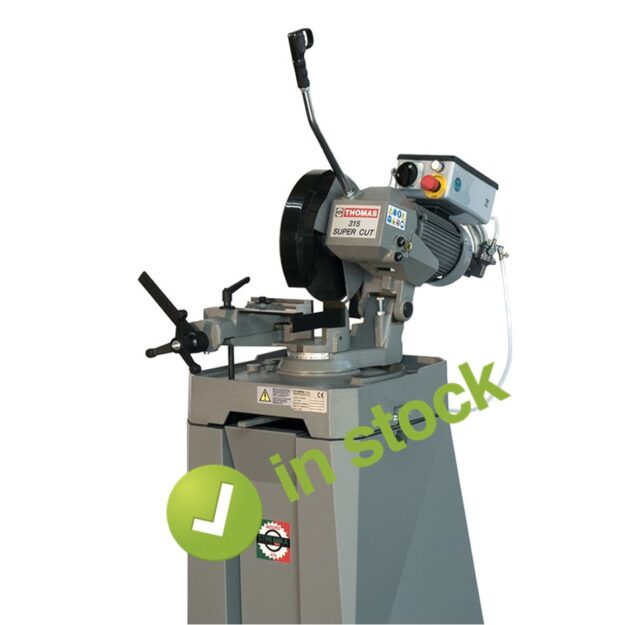

Double mitre manual circular saw for solid materials and profiles (construction steels in general).
Blade disc 315 mm.
Two way miter cutting (from 0° to 45° right and left).
Two cutting speeds threephase motor or single speed monophase motor.
Quick lock vice with anti-burr clamping.
Optional pedestal in steel plate.
Cutting cycle: Vice locking of material to cut – the sawdisc runs as long as the operator holds the gripswitch – manual pull down of the cutting head.

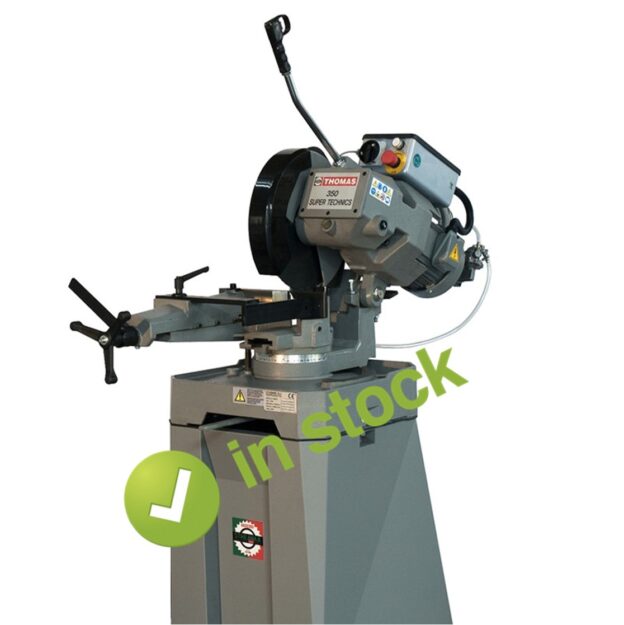

Thomas Manual 350 Super cut Circular Saw
Double mitre manual circular saw for solid materials and profiles (construction steels in general).
Blade disc 350 mm.
Two way miter cutting (from 0° to 45° right and left).
Two cutting speeds threephase motor or INVERTER (for variable blade speeds from 20 to 105 m/min).
Motor 44/88 rpm.
Quick lock vice with anti-burr clamping.
Optional pedestal in steel plate.
Cutting cycle: Vice locking of material to cut – the sawdisc runs as long as the operator holds the gripswitch – manual pull down of the cutting head.
Mep 352 Falcon Manual Circular Sawing Machine
FALCON 352, manual pull-down sawing machine to cut metals mitering from -45° to +45°, which can be supplied with or without a steel base.
HEAVY-DUTY
> The cast-iron structure absorbs vibrations and ensures greater cutting stability and longer blade life.
> The double head return spring ensures maximum safety during the cutting cycle.
> The adjustable steel anti-burr device clamps the material both in the infeed and outfeed.
> The control panel equipped with thermal relay and minimum-tension coil ensures maximum protection against phase failure.
EXCEPTIONAL FLEXIBILITY
> The mechanical stops at -45°, 0° and +45° with locking device at all angles in between allow the quick positioning of the saw head.
> The cutting vice equipped with a sliding jaw allows to clamp the material as close as possible to the cutting line.
> Engraved metric scale and flip-over stop are the perfect solution for precision and serial cuts at any length.

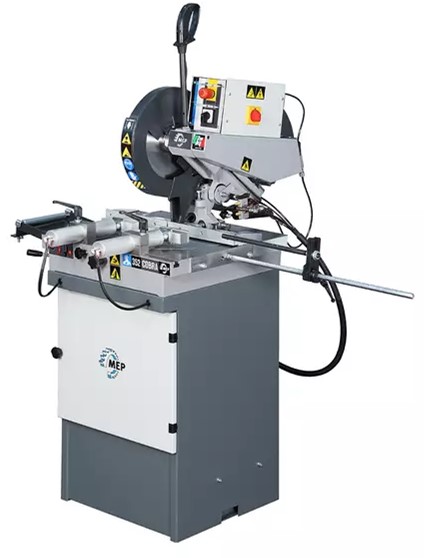

COBRA 352 MA, manual pivoting sawing machine with hard-metal teeth blade to cut light alloys, aluminium profiles and solids mitering from -45° to +45°.
The saw head is vertically adjustable to also perfom cuts with head tilting from 0° to +45°.
HEAVY-DUTY
> The cast-iron structure absorbs vibrations and ensures greater cutting stability and longer blade life.
> The transmission system equipped with pulleys and belts ensures high rigidity.
> The large working surface equipped with a turning table assembled on a thrust bearing of diameter of 425 mm ensures maximum cutting stability.
> The automatic coolant spray mist device, activated only when the cycle starts so as to avoid waste, grants an excellent blade cooling and longer life.
TIGER 352, electropneumatic manual vertical circular sawing machine to cut steels mitering from -45° to +60°. Upon request, it is provided with a pneumatic vice (MA) manually activated through a switch.
HEAVY-DUTY
> The cast-iron structure absorbs vibrations and ensures greater cutting stability and longer blade life.
> The two-stage gear transmission guarantees a high cutting efficiency and torque.
> The control panel equipped with thermal relay and minimum-tension coil ensures maximum protection against phase failure.
Auto pull down horizontal bandsaw for small and medium sized ferrous material.
One way miter cutting (from 0° to 60° right).
Hydraulic regulator to control the sawframe down feed.
Two cutting speeds.
Blade rotation start switch with maintainded action on the sawframe grip.
Control pannel setted on a fixed arm support.
Coolant liquid with electropump and crucible.
Pedestal in steel plate.
HB cutting cycle
Vice locking of material to cut. The cut can be effected automatically through sawframe down feed at controlled speed by the hydraulic regulator. Automatic stop at the end of the cut and rise of the sawframe.
