Tube Notcher Belts kept in stock
Contact Rollers Kept in Stock
These are suitable for our notcher and may fit other models please let us know your roller dimensions happy to help, all our rollers are fitted with SKF Bearings
| Maximum sheet metal thickness (40 kg/mm2) | 3 mm |
| Max. drawing length at 90° | 130 mm |
| Cutting angle | 90° |
| Maximum cutting force | 2,2 t |
| Table size | 600 x 460 mm |
| Dimensions | 630x660x1270 mm |
| Weight | 170 kg |
Notching Machine Manual
| MAXIMAL CUT BLACK SHEET METAL THICKNESS | 1,6 mm |
| MAXIMAL CUT STAINLESS SHEET METAL THICKNESS | 0,8 mm |
| MAXIMAL DRAWING LENGTH AT 90o | 152 mm x 152 mm |
| CUTTING ANGLE | 90° |
| MAXIMAL FORCE | 4 t |
| STROKE | 19 mm |
| DIMENSIONS | 610mm x 570 mm x 560 mm |
| TABLE DIMENSIONS | 457 x 305 mm |
| WEIGHT | 95 kg |
Box Pan Folder Machine
| WORKING WIDTH | 2040 mm |
| MAXIMAL SHEET METAL THICKNESS | 2,5 mm |
| BENDING ANGLE | 0° – 135° |
| DIMENSIONS | 2500 mm x 770 mm x 1100 mm |
| WEIGHT | 1295 kg |
Vox Pan Folder Machine 1270x2mm

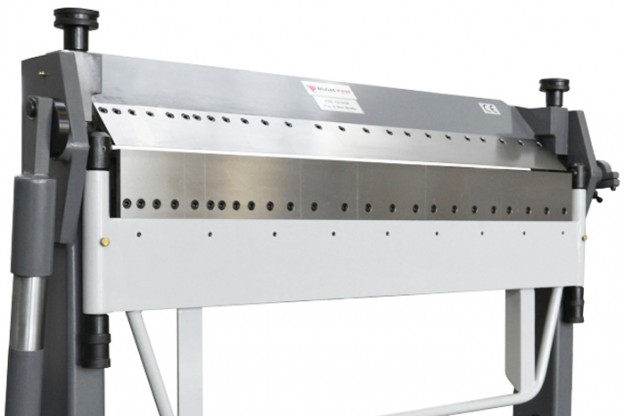

The folding machine has exchangeable segments on the upper and lower part. It gives extremely broad use for big elements as well as details folding. The segments are made of pressure iron castings, resistant to deformations and of exceptionally high strength. A simple construction secures high operation comfort and a broad range of practical use. The smallest segment possible to clamp is of 25 mm size and the biggest is of 270 mm size with a possibility of place change enable folding of any shape in the quality to be achieved. The sheet metal maximum thickness is 2 mm and the possibility of opening adjustment up to 30 mm make that there is practically no limits for this model.
| WORKING WIDTH | 1270 mm |
| MAXIMAL SHEET METAL THICKNESS | 2,0 mm |
| MAXIMAL OPENING LENGTH | 30 mm |
| BENDING ANGLE | 0° – 150° |
| NUMBER OF SEGMENTS | 5 x 50mm; 5 x 76mm; 5 x 102mm |
| DIMENSIONS | 1710 mm x 750 mm x 1420 mm |
| WEIGHT | 422 kg |
Box Pan Folder Machine
| WORKING WIDTH | 1020 mm |
| MAXIMAL SHEET METAL THICKNESS | 2,5 mm |
| MAXIMAL OPENING LENGTH | 48 mm |
| BENDING ANGLE | 0° – 150° |
| DIMENSIONS | 1410 mm x 750 mm x 1420 mm |
| WEIGHT | 390 kg |
